Goff's Climate Curtain Walls

Separate your facility climates to maximize efficiency with insulated curtain walls.

Goff’s Climate Curtain Walls dramatically reduce temperature loss with double paneled vinyl curtains lined with a double bubble foil insulation thermal barrier, providing flexible climate control isolation.

Separate wash down areas with Goff's Clean Curtain Walls.

Made in the USA and quickly shipped to your facility for expedited installation.

Separate wash down areas with Goff's Clean Curtain Walls.

Control temperature sensitive areas, close off a space or build a 4-sided room.

Separate wash down areas with Goff's Clean Curtain Walls.

Available in a wide range of sizes for any custom configuration in your facility.

Separate wash down areas with Goff's Clean Curtain Walls.

Create flexible space without permanent or costly construction & additional taxes.

Separate Zones with R-8 Insulation

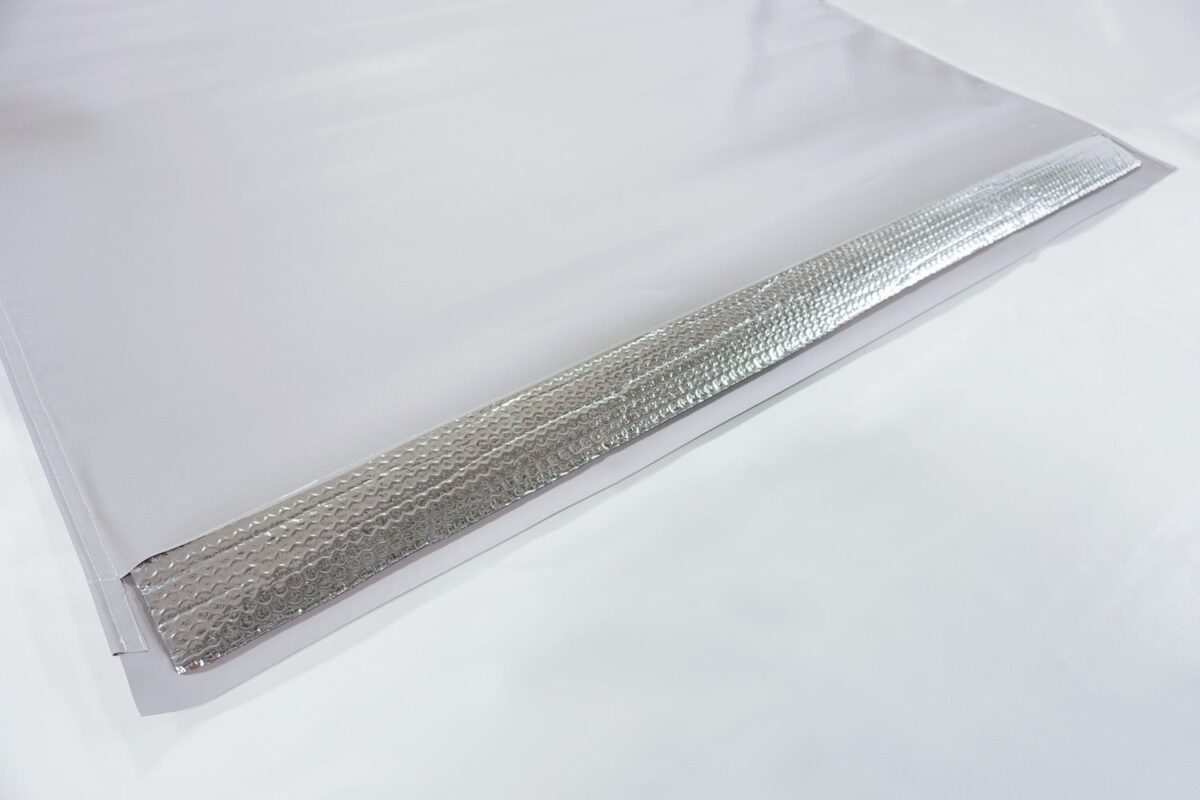

Lined with a thermal barrier, consisting of two layers of polyethylene industrialized air bubbles that are bonded between two layers of aluminum polyester film that will not compress, collapse or disintegrate over time, Goff’s Climate Curtain Walls provide an “R” value of R-8 with a single panel, maintaining space temperature and maximizing energy efficiency.

blank

Moveable insulated walls for ultimate space flexibility.

Made with the unique ability to collapse to 1/3rd of the opening width and slide out of the way, insulated curtains are flexibly designed and provide the flexibility to move machinery, equipment, and people in and out of temperature controlled areas.

Floor to ceiling solution for insulated areas. Here's how:

Climate Curtain Walls can be custom made up to 100′ high in any width, and work best with optional accessories. Hover over the image below to check them out!

1. Curtain Overlap

Velcro sewn along both edges of each climate curtain allows for connecting curtains to one another, reducing temperature loss at the connection points.

2. Floor Sweep

Optional double sided floor sweep attaches to the bottom edge of the cold storage curtain to create a complete seal at the floor, especially on uneven floors.

3. Upper Valance

Optional thermal valance Velcros to the track to seal open areas above and below the track creating full space coverage, ensuring maximum climate control capabilities.

4. Integration

Easily implement other Goff’s products into your curtain wall system such as a Structural Door Support Frame & G2 Door to build a complete and functional room without permanent or costly construction.

Take your cold storage and creating separate space up a notch:

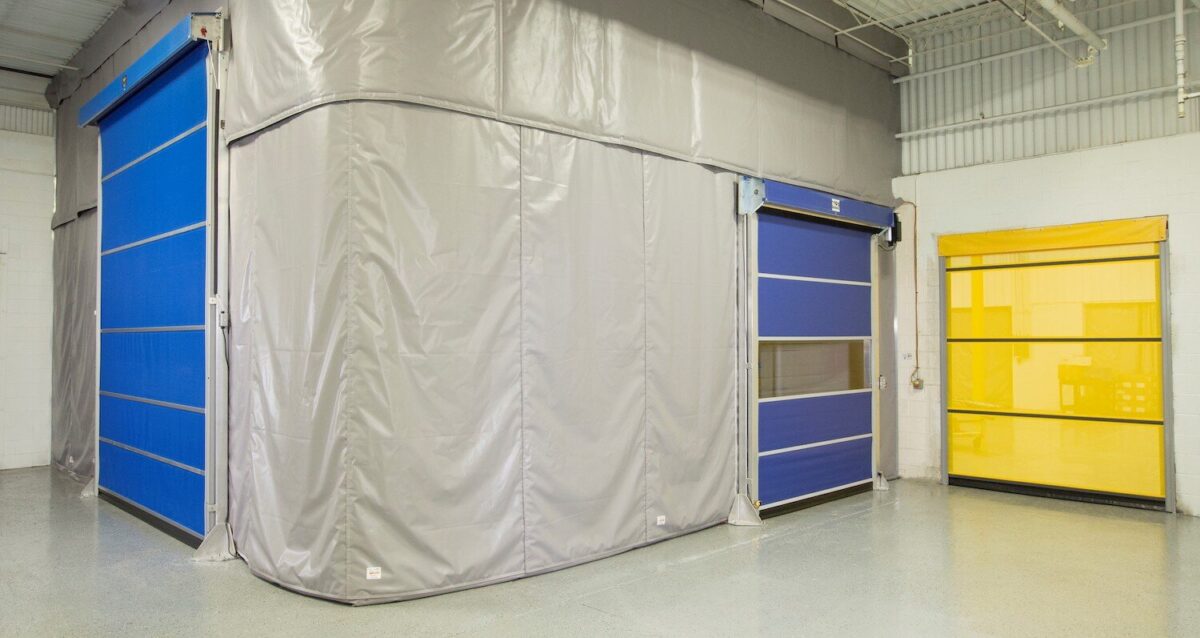

Forget building permanent walls! Create entire rooms within your facility using Goff’s Climate Curtain Walls, paired with our easy-to-use high performance vinyl doors. Whether you’re in and out of your cooler space all day, or only need occasional access, we’ve got the solution you need to make your space energy efficient.

LEARN MORE
insulated-curtain-wall-cold-storage-curtains-climate-curtain-wall
ImageTitleDocument CategoryDocument Taghf:tax:document_categoryhf:tax:document_tag
Goff's Product Warranties
Goff’s Product Warranties, , , , , , , , , , , , , , , , , , , , , , Downloadwarranty-documentportable-sound-screens clean-guard-doors model-2000-doors aluminum-repair-bay wash-guard-doors side-seal-doors sound-curtain-walls clean-curtain-walls harsh-guard-doors roll-up-curtain-walls fall-guard outdoor-curtain-walls g2-doors doors welding-curtain-walls personal-safety-partitions curtains climate-curtain-walls strip-doors safety-products g1-doors portable-welding-screens original-curtain-walls
Climate Curtain Walls Product Brochure
Climate Curtain Walls Product Brochure, Downloadproduct-brochurescurtains climate-curtain-walls
Climate Curtain Wall & Track Installation Instructions
Climate Curtain Wall & Track Installation Instructions, Downloadinstallation-instructionscurtains climate-curtain-walls

Goff's Curtain Hardware:

Every Goff’s Climate Curtain Wall system comes with these hardware components, including a variety of track mounting options based on your application.

  1. Track: Track to match the exact length of your curtain system.
  2. Track Splice: Connects multiple track pieces together.
  3. Roller Hooks: Smoothly glides your curtain along the track.
  4. End Stops: Stops the rollers from rolling out of the track.
  5. Track Mount: 25+ track mounting options to choose.
blank

Threaded Rod Support

Suspends track when there isn’t any available structures to attach too.

blank

Beam Flange Support

Clamp design used to secure track directly to the edge of a beam.

blank

Wall End Mount Support

Ability to mount your track directly to the wall or other vertical surfaces.

blank

Ceiling Support

Ability to mount your track directly to the ceiling or other horizontal surfaces.

blank

Floor Support

Flexibility to free-stand your curtain system anywhere you choose.

climate-curtain-valance-cold-storage-curtains-insulated-curtain-wall

Upper Valance Panel

Create a seal between your hanging track and ceiling to maximize spatial separation. Thermal valance velcros to the track ensuring maximum climate control.

floor-sweep-insulated-curtain-wall-cold-storage-curtains

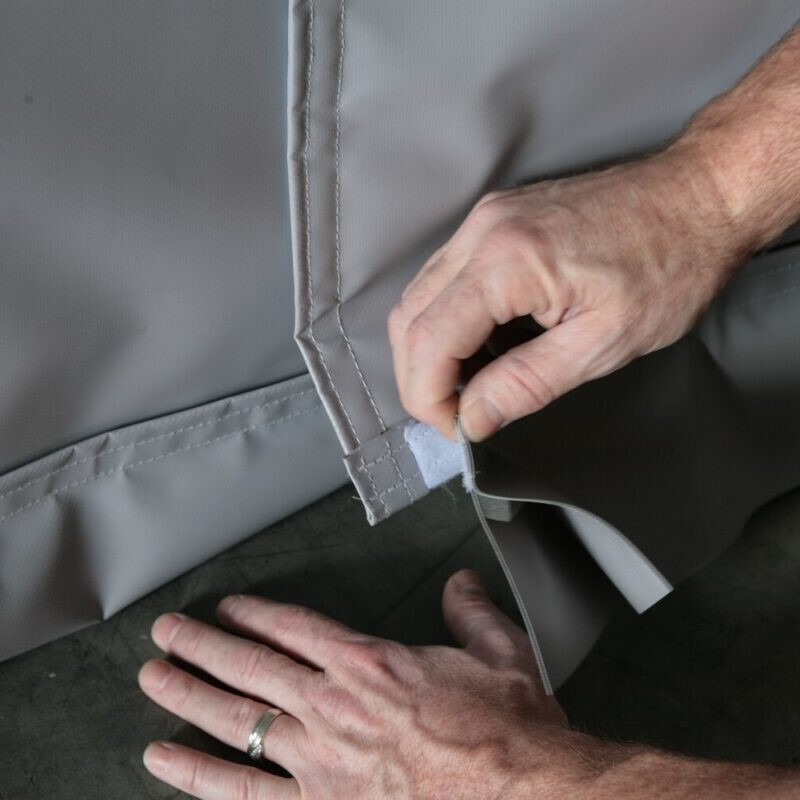

Floor Sweep

Double sided floor sweep attaches to the bottom edge of the curtain to create a complete seal at the floor. Great for uneven floors!

blank

Wind Ties

Secure your curtain walls in cases where wind or negative pressure is present. Available in standard and heavy duty styles.

custom-branding-vinyl-curtain-walls-

Custom Branding

Personalize your curtain wall with company logos, slogans, or building area labels.

18oz Vinyl Colors

Custom colors available on request:

blank

Single Curtain:

Use a single industrial curtain wall for instant lateral separation between spaces.

blank

Two-Sided Curtain:

Create an L-shaped wall with vinyl curtain to segment off a corner of your building.

blank

Three-Sided Curtain:

Add a 3-sided industrial curtain wall configuration to one of your walls.

blank

Four-Sided Curtain:

Build an entirely standalone space using a 4-sided industrial curtain wall design.

Goff’s Climate Curtain Walls are designed to provide your facility with flexible space partitions will minimizing temperature loss. Insulated curtain walls are manufactured in Pewaukee, WI using what we’ve learned from our 30+ years innovating curtain walls. Moreover, we allow you to build your curtain system from the ground up in a range of sizes, giving you the freedom of customization. Each cold storage curtain includes Goff’s best-in-class warranty and exceptional customer care & tech support, delivered fast with our industry-leading lead times.

Options and accessories to increase your ROI:

Climate Curtain Walls can be custom made up to 100′ high in any width, and work best with optional accessories such as the upper thermal valance and lower floor sweeps. Utilizing both gives your climate controlled room a full and complete enclosure securing any cracks or holes that come from your building’s structure. They easily velcro onto your cold storage curtain and are custom manufactured to fit your building’s specific needs.

Get more from your cold storage curtain:

Go beyond the floor sweep and valance by incorporating high speed doors in your temperature controlled spaces. This allows users to move quickly in and out of areas without affecting the climate. Goff’s Structural Door Support Frames allow you the option to add a door at any location and attach climate curtains directly to the frame for uninterrupted climate control.

The set up:

Order as much track as needed to fit the dimensions of your curtain configuration system. This allows you to customize where you add your space separation. With several options mount your track directly to the wall, suspend from the ceiling, or choose a floor mount to further optimize your space.

Submit a quote now to get your Climate Curtain Wall ordered and start maximizing space and reducing temperature loss in your facility!

Easily Installed

Expert installation is available for rapid implementation, or included instructions can guide your team through our easy to set up system. Installation can be scheduled during down time for minimal facility interruption.

Guaranteed to Last

Every Goff’s Climate Curtain Wall system comes with a 5 year warranty from failure in normal use due to defects in material/workmanship, and a lifetime warranty on all track, rollers and hardware.

Here to Help

The Goff’s customer care & tech support team is available to answer any questions you have about your curtain wall system. Above all, making sure you get the most out of your investment at your facility.

Ready to quickly separate climates & maximize efficiency at your facility?

Click below to get a quote on our Climate Curtain Wall and start controlling climate at your facility.
