Goff's Edge of Dock Levelers
For light to moderate load capacities.
Bridge the gap between a loading dock and a truck trailer. Goff’s cost-effective alternative to pit-style dock levelers are mounted to the edge of the loading dock and are used in situations where the height difference between the dock and the trailer are inconsistent and the load capacity is moderate.
Cost-effective solution.
Edge of Dock Levelers are a more budget-friendly option to pit-levelers, providing an easy way to improve efficiency at the loading dock.
Simple installation.
Mounted right to the edge of your existing loading dock, they are easy to install creating an efficient operation that can be used right away.
Quick & easy operation.
Manually or hydraulically operated with a simple handle or button, edge of docks can be deployed simply for quick loading and unloading.
CONSTRUCTION
Goff’s Edge of Dock Levelers are designed for light to moderate capacities with a range up to 30,000 lbs. All EOD’s are built with a durable high tensile strength steel, steel bumper blocks with molded rubber bumpers, 16″ bumper projection and milled lip edge for smooth tire rollover.

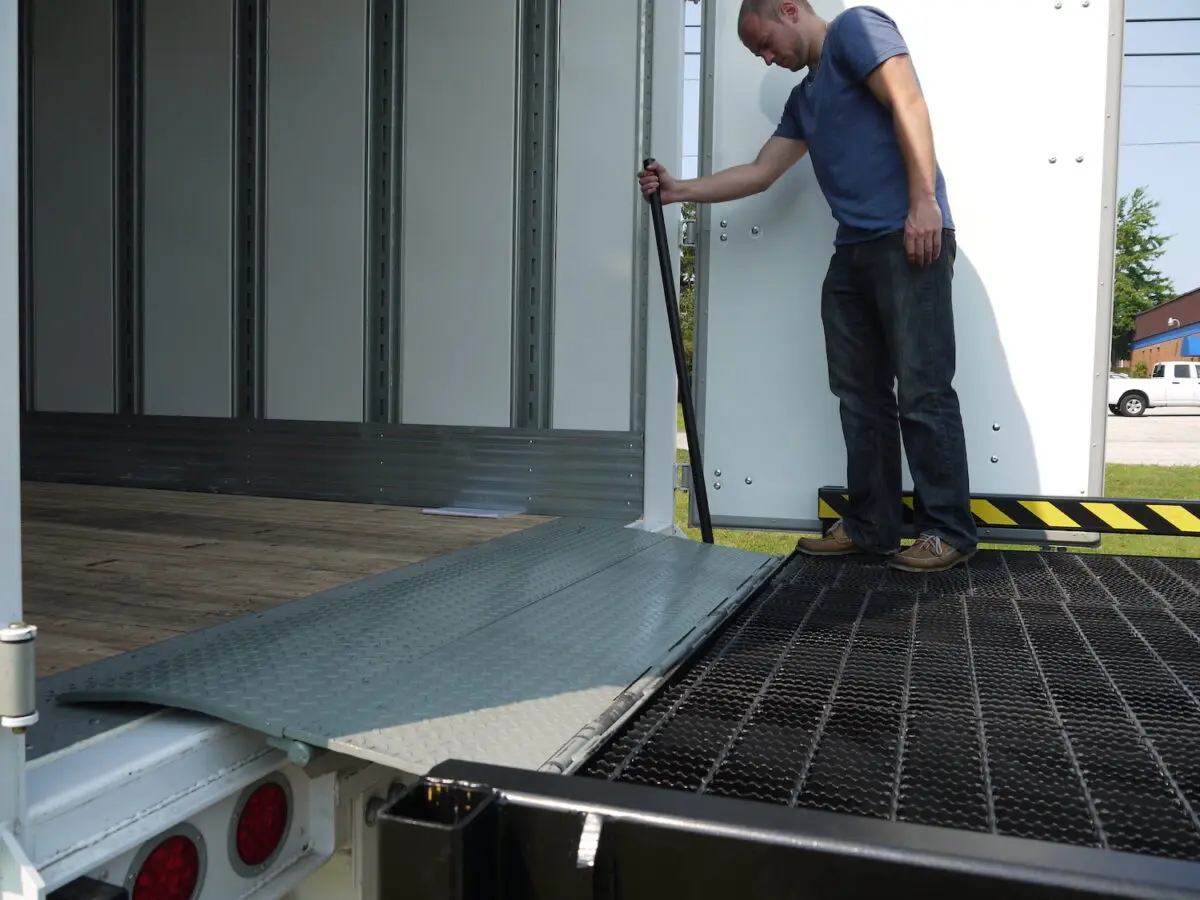

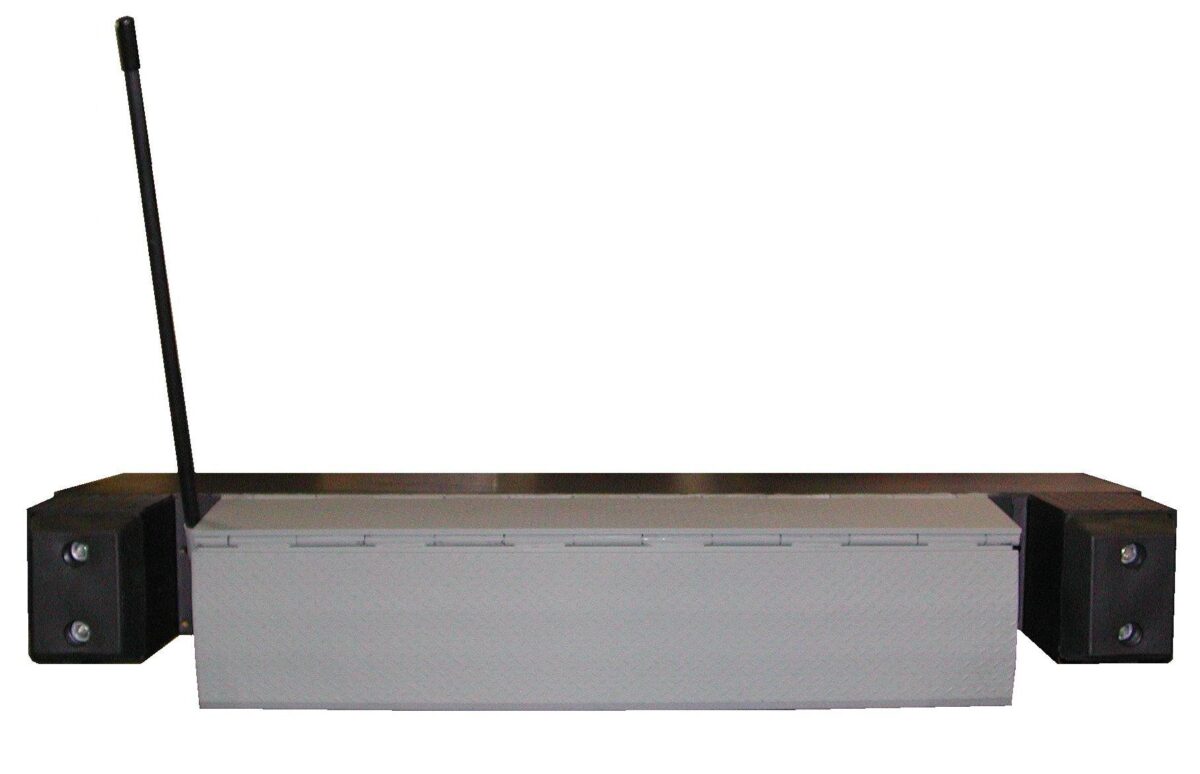

Our GMEOD series is manually operated. The dock attendant simply inserts the activation bar into the unit and pulls downward to engage the platform and lip. The attendant pushes the activation bar forward to put the lip to the “service ready” position.
- Simple pull/push bar activation
- Dual extension spring lifting mechanism
- Positive lip extension mechanism
- 5″ operating range above & below dock level

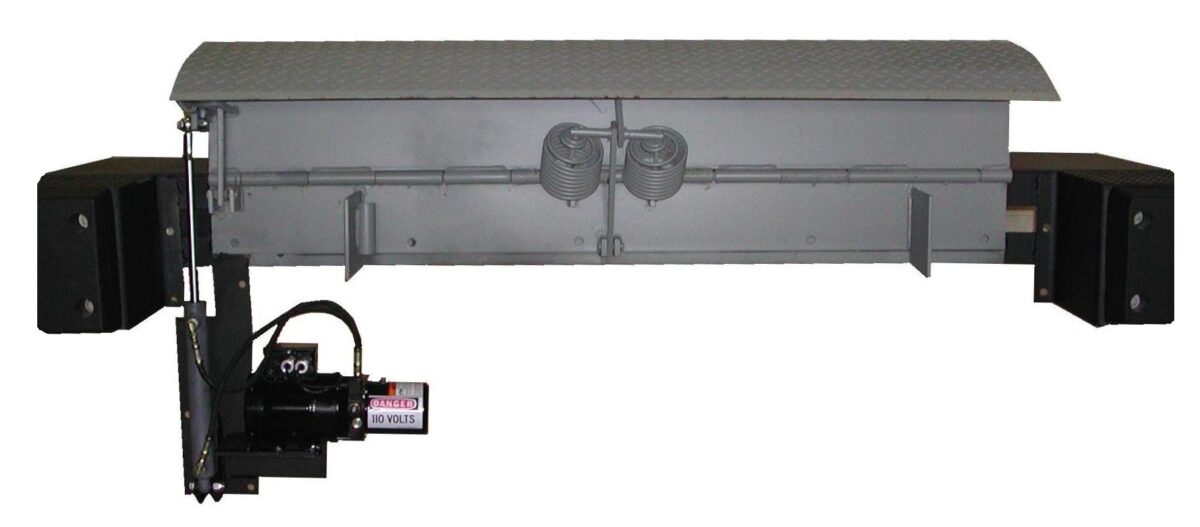

Our GHEOD series is a hydraulically operated edge of dock leveler. The dock attendant simply pushes the button to hydraulically position the dock leveler to the “service ready” position.
- Simple push button activation
- Fully hydraulic lip and deck cylinder
- Available in multiple phase & voltage options
- 5″ operating range above & below dock level
| Image | Title | Document Category | Document Tag | hf:tax:document_category | hf:tax:document_tag |
|---|
16" Refer Lip
12" Transition Plate
Formed Angle - 12"w x 12"h x 120"l
Goff’s Edge of Docks provide an easy way to improve efficiency at the loading dock. Each Edge of Dock Leveler come with Goff’s best-in-class warranty and exceptional customer care & tech support, delivered fast with our industry-leading lead times.
Our two options:
Choose between our two different operations: mechanical and hydraulic. Our mechanical EOD has a simple pull/push bar activation. The attendant simply puts the handle into the unit and pulls downward to activate. The hydraulic option can be operated with the push of a button, therefore being an easier option. This comes in multiple phase and voltage options.
Our construction:
Goff’s line of Edge of Dock Levelers are built with high tensile strength steel, steel bumper blocks with molded rubber bumpers, 16″ bumper projection and has a milled lip edge for smooth tire rollover. Overall, our units are designed for light to moderate applications.

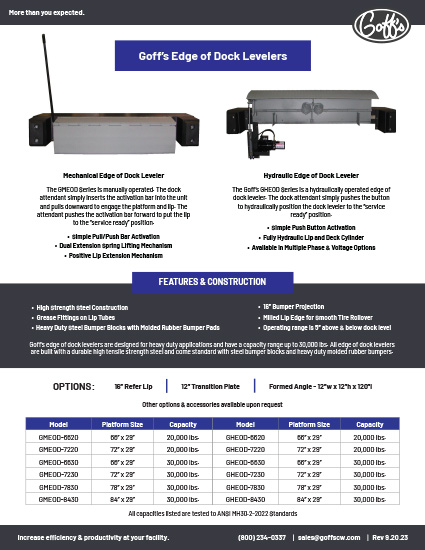

Check out the Download tab for more information on everything EOD related!
Goff's 1 Year Warranty
Goff’s warranty package for the Edge of Dock series from failure in normal use and defects in material and workmanship is covered for a period of 1 year as approved by Goff’s tech support team. Our team will help to keep you up and running.
Fastest Industry Lead Times
With the industry’s fastest lead times, you can have your complete Edge of Dock system installed and active to provide maximum efficiency at your facility in no time. Therefore minimizing downtime & maximizing productivity.
Customer Care & Tech Support
The Goff’s customer care & tech support team is available to answer any questions you have about Edge of Dock Leveler making sure you not only get the most out of your investment, but ensure it runs smoothly for years to come.
Ready to increase efficiency at the loading dock?
Click below to get a quote on our Edge of Dock Levelers!
